COMFORT DESIGN SHUTTER SYSTEMS
Whether you modify an old building or plan to construct a new building; Comfort-Design Plus meets your needs all at once in terms of protection from the sun, security against burglary and screen.

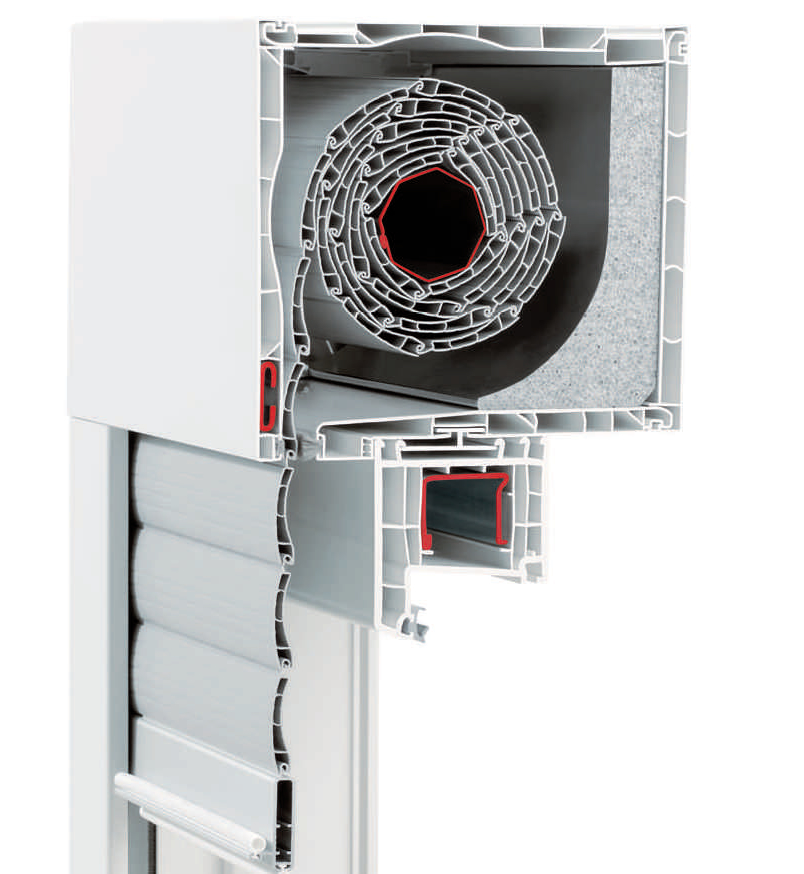

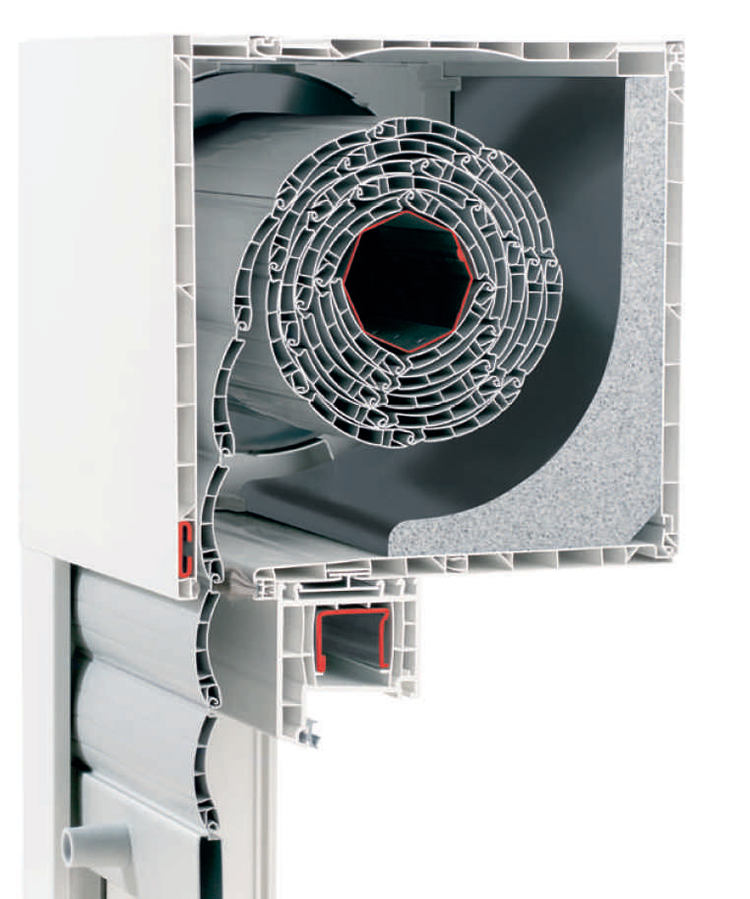

Three shutter case dimensions of 155 mm, 195 mm and 245 mm (universal) are convenient for the alteration works of old buildings thanks to their compact shapes. 245 mm shutter cases, on the other hand, are preferably suitable for higher window and door elements employed in new buildings due to their large shutter cases.
Click Here For more information about Rehau Shutter
To order this product click here.
ADDING VALUE TO SHUTTER SYSTEM, VERSATILE DESIGN FEATURES
- Compatible with wooden, plastic and aluminium window systems which are released to the market in a standard form, It is designed for 58-90 mm case profile depths,
- Thermal insulation: U < 0,85 W/m²K
- Acoustic insulation: Rw, P= up to 42 dB
- Case dimensions: Offered as 155 mm, 195 mm, 195 mm universal and 245 mm.
- Element heights up to 1,5 m for 155 mm case dimension,
- Element heights up to 2,7 m for 195 mm, 195 mm universal and 245 mm case dimensions,
- 195 universal and 245 mm case dimensions and an optional revision cover which is opened in the downward direction.
- Decoration folio, colouring with paints or aluminium cover
- It is possible to paint the shutter in RAL colour tones over 170.
- Ideal solution for the heights up to 2,7 m for new and old buildings,

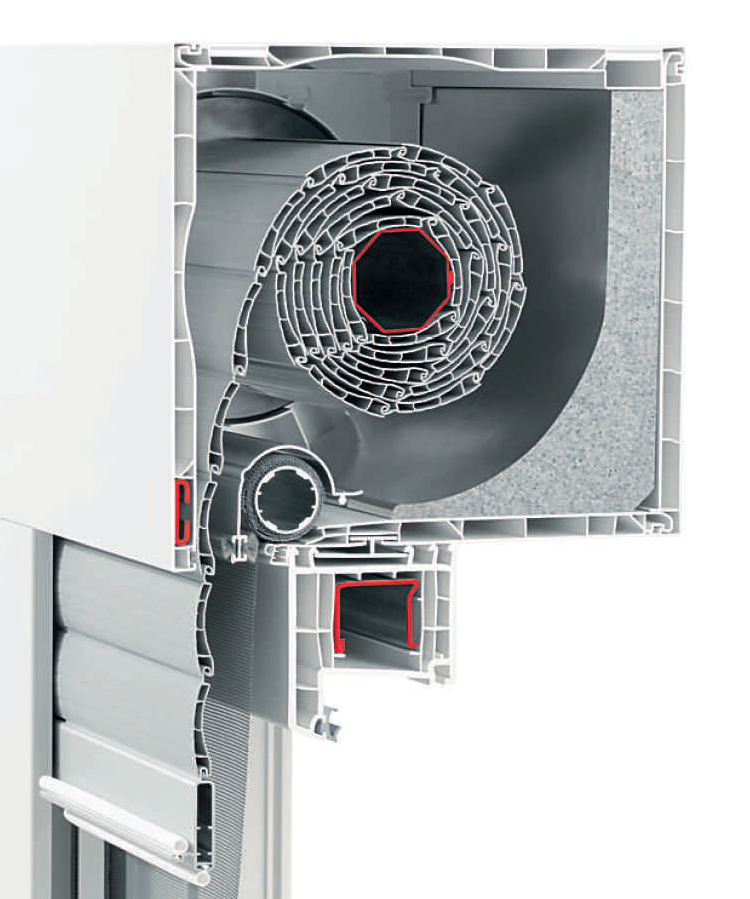

- An integrated screen can be provided for 195 mm, 195 mm universal and 245 mm case dimensions (the screen has a fibre glass texture which is lightproof and weather-resistant)
- The case dimensions of 195 mm universal and 245 mm can optionally be provided with a revision cover which is opened in the downward direction; in this way it can both internally and externally mortared.
- Inclined base profile transmits the moisture to the outside.
- Mounted uplifting safety increases the security against burglary.
- Açılır-kapanır ve katlanır pencerelerde dışa açılımlı pencereler, sağa veya sola açılım.
- Çift açılım pencereler için içeri açılan pencereler
- Dışa açılan veranda pencereleri
- Sağa veya sola açılan çift açılım veranda pencereleri için içeri açılan pencereler
