REHAU GENEO
GENEO is the best among the window profile systems on the market in terms of energy with 86 mm structure depth.
The property of GENEO depends on RAU-FIPRO material having a high technology. This is a fibre combinational material reinforcing the profile.
The supporting sheets required for stability are removed in 90% of the applications. As the thermal bridges owned by the steel are removed in this way, GENEO aims the best heat insulation values.
GENEO even fulfils more than what the “energy saving regulation (EnEV)” stipulates as a condition.
Click Here For more information about Rehau Geneo
To order this product click here.
MÜKEMMEL ENERJİ VERİMLİLİĞİ
- Structure depth: 86 mm/medium gasket – Number of chambers: 6 chambers
- Heat insulation: Up to Uf 0,86 W/m²K
- Energy saving: Up to %76. Reduction of the energy loss in the transition from wooden/plastic windows of 1980’s (Uf = 1,9, Ug = 3,0) to GENEO profiled windows (Uf = 0,86, Ug = 0,5, window dimension: 123 x 148 cm).
- Acoustic insulation: Up to Rw, P = 47 dB without the steel supporting sheet (Rw = 50 dB with glazing)
- Security against burglary: Resistance class is up to 3 and Class 2 for the windows without steel supporting sheet.
- Air permeability: 4 (EN 12207); Waterspout impermeability: 9A (EN 12208)
- Özel şekiller sayesinde çok sayıda mimari imkan, örn. oval ve üçgen pencerelerin yanı sıra kemerli ve karolajlı yapı şekilleri ilk kez destek sac ile mümkündür.
- Desenli folyo, boya veya alüminyum kapak sayesinde çok çeşitli kompozisyon olanakları

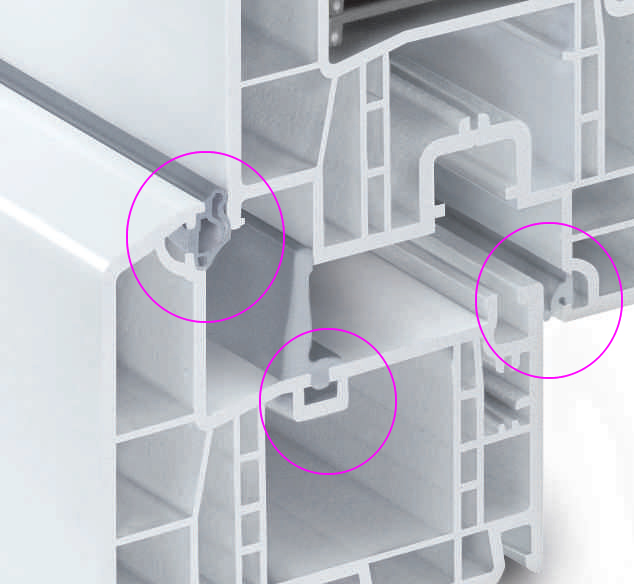

- Beyaz profillerin üzerinde bulunan açık gri contalar ve renkli profillerin üzerinde bulunan siyah contalar vurgu katar.

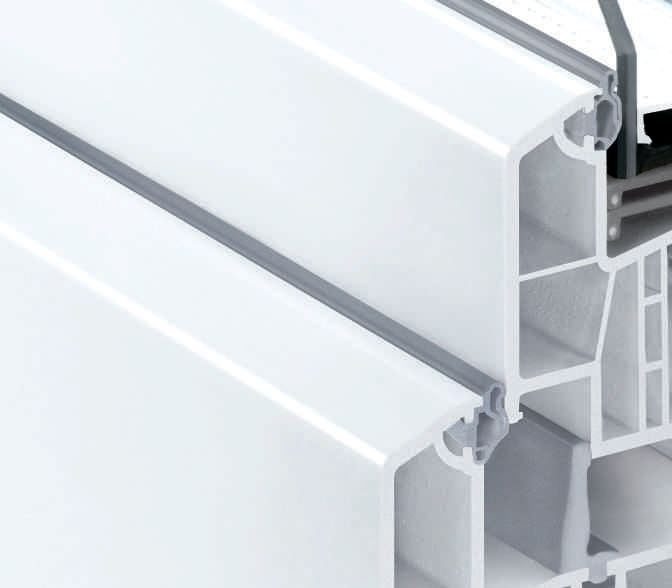

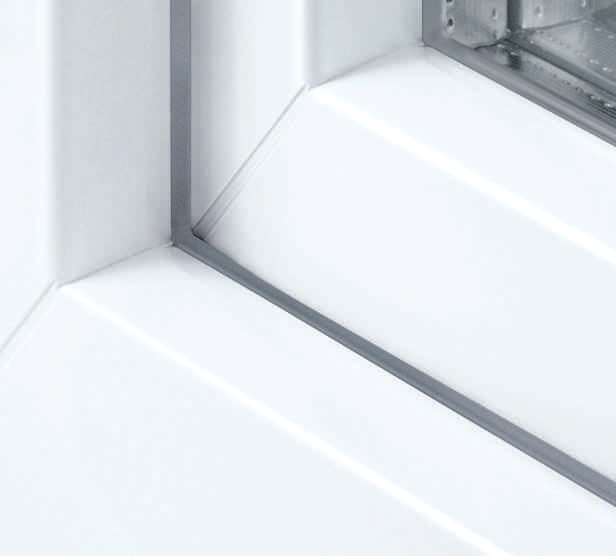

- 20°lik kemer ve 5 mm dış radyüsler sayesinde zarif görünüm
- Kemerli kanat tasarımı sayesinde ilave tasarım imkanları
- The following accessories and additional products are available for the GENEO system:
A solution of corner curve without exudation: It efficiently prevents the occurrence of condensation and fungi (DIN 4108-2). Other solutions for the variable corner curves having 90° and 90° - 180° interior angles. - REHAU Comfort-Design plus: The shutter system ensures an efficient protection against visibility from the outside and light. A screen can optionally be attached.
- Fully supported window system without the steel supporting sheet.

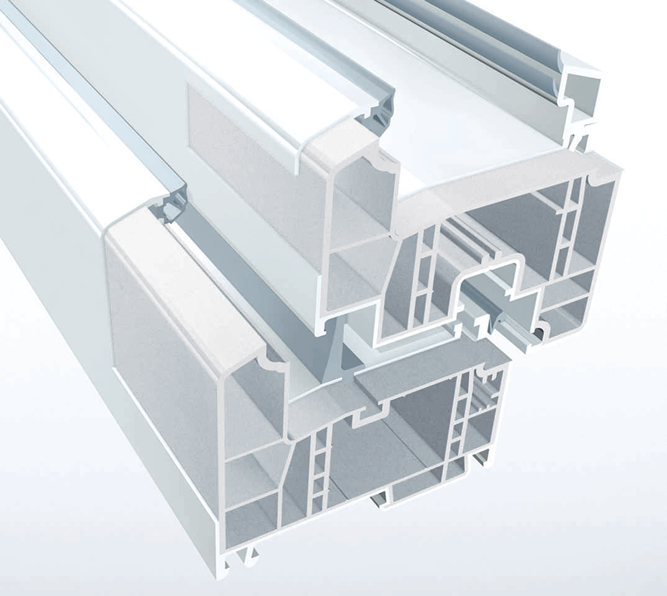

- A perfect profile construction thanks to the highly technologic RAU-FIPRO material and a perfect stability through “integrated reinforcement system (IVS)”.
- 115 mm visible width for optimum light receipt.
- A lightness advantage up to the percent of 40% when compared to conventional window profile systems.

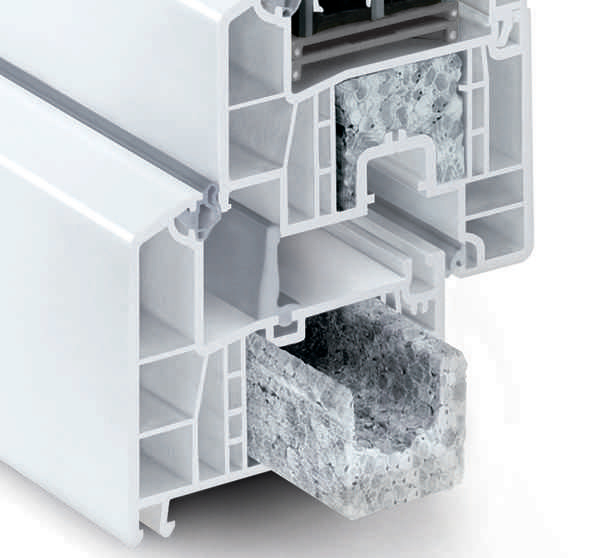

- Function chambers for the optimisation of insulation properties with the help of heat modules.

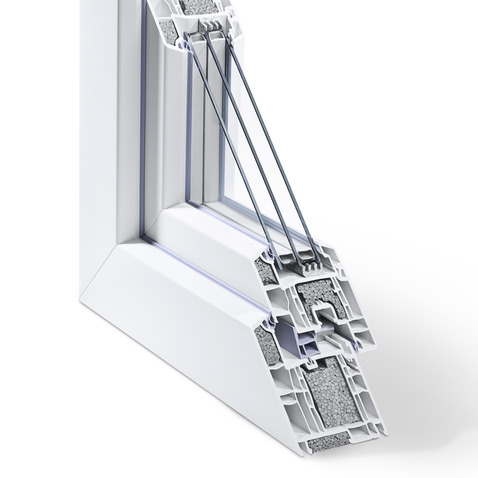

- 66 mm wide glass space for the application of threefold glazing.
- High Definition Finishing surface(HDF): It has a high quality, stylish and smooth structure and thus, it is very easy to perform maintenance works on it.
- A perfect energy efficiency – You can have the most ideal exterior insulation thanks to the GENEO family (windows, house doors, uplift sliding doors).
- Açılır-kapanır ve katlanır pencerelerde dışa açılımlı pencereler, sağa veya sola açılım.
- Çift açılım pencereler için içeri açılan pencereler
- Dışa açılan veranda pencereleri
- Sağa veya sola açılan çift açılım veranda pencereleri için içeri açılan pencereler
